SKU: APSX6048VRNET Categories: , Tag:

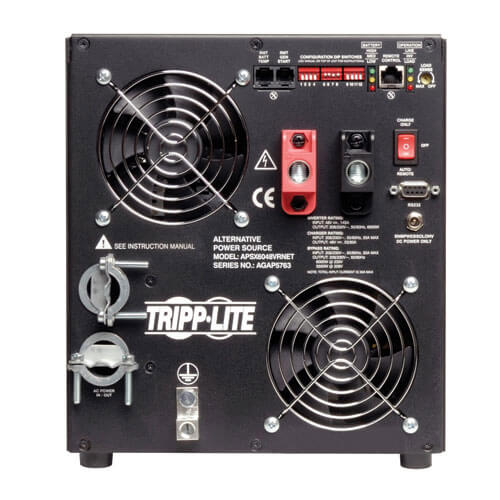

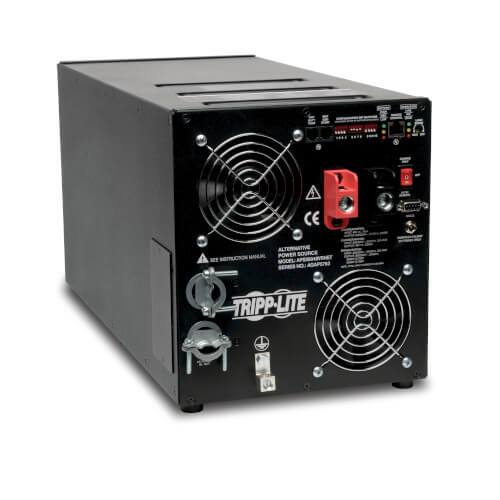

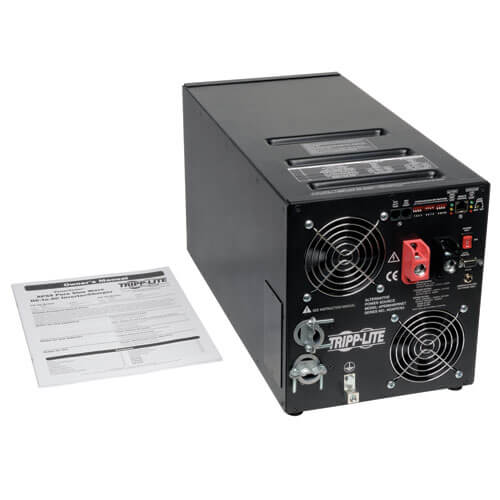

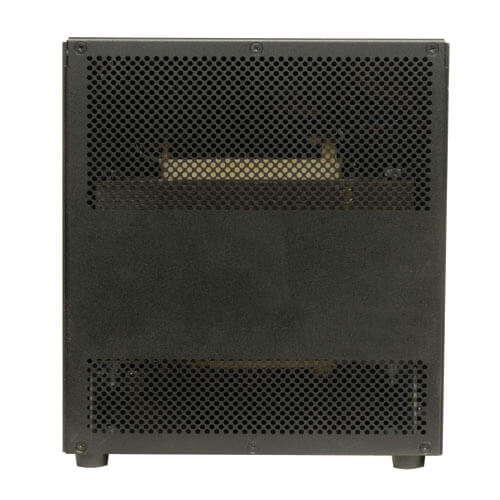

Tripp Lite 6000W APS X Series 48VDC 208/230V Inverter/Charger with Pure Sine-Wave Output, AVR, Hardwired - APSX6048VRNET

  • Available to order.
  • ETA will be advised upon ordering or call us on 0800 978 8988 for leadtime.

£1,710.08 Ex. VAT £2,052.10 Inc. VAT

Warranty: 1 Year

All major debit and credit cards accepted.

  • Description
    Reliable Power for Mobile, Emergency and Remote Sites

    • Generates 208/230V pure sine-wave power from 48V battery bank
    • Ideal for powering variable-speed tools, computers, LEDs, fans, audio/video components and other sensitive electronics
    • Designed for easy installation in RVs, fleet vehicles and emergency vehicles
    • Functions as vehicle inverter, standalone AC power source or extended-run UPS
    • Unlimited runtime with variety of user-supplied batteries

    Pure Sine-Wave Power for Normal and Peak Power Demands

    • 6000W of continuous power
    • 9000W of reserve power up to 1 min.
    • 12000W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
    • Automatic overload detector, cooling fan and resettable AC circuit breaker protect unit from damage
    • High-current DC input terminals for simple hardwired installation

    Automatic Voltage Regulation

    • Corrects brownouts and overvoltages without using battery power during battery charging and UPS standby modes

    Remote Monitoring Capability

    • DB9 port for optional SNMPWEBSOLOHV, which turns the unit into a monitored network device
    • Enables network monitoring via SNMP, SSH, Telnet, or the Internet

    Automatic Transfer Switching

    • Transfer relay switches to inverter power during blackout in 10 or 20 ms
    • DIP switches configure high and low voltage auto-transfer

    3-Stage 23/90A Selectable Battery Charger

    • Serves as battery charger when external 208V or 230V AC power is supplied and powering connected equipment
    • Protects battery from overcharging and overdischarging
    • Low-battery protection prevents excessive battery depletion
    • DIP switches configure wet/gel charging profiles

    Remote Generator Starter Jack

    • Connects to separate generator with user-supplied cable to automatically cycle generator when battery level is low

    Rugged Steel Housing

    • Resists moisture, vibration, impact and high-humidity environments

  • Technical Data
    OVERVIEW
    UPC Code037332137838
    INPUT
    Nominal Input Voltage(s) Supported208V AC; 230V AC
    Recommended Electrical ServiceDC INPUT: Requires 48VDC input source capable of delivering 138A for the required duration (when used at full continuous capacity – DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 250A minimum battery system fusing is recommended.
    Input Connection TypeDC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate
    Voltage Compatibility (VAC)208; 230
    Voltage Compatibility (VDC)48
    OUTPUT
    Frequency Compatibility50 / 60 Hz
    Pure Sine Wave Output  Yes
    Output (Watts)6000
    Nominal Output Voltage(s) Supported208V; 230V
    Output ReceptaclesHardwire
    Continuous Output Capacity (Watts)6000
    Peak Output Capacity (Watts)12000
    Output Voltage Regulation  LINE POWER (AC): Maintains 208/230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 208/230 VAC (+/-5%).
    Output Frequency Regulation  50/60 Hz (+/- 0.3 Hz)
    BATTERY
    Expandable Battery RuntimeRuntime is expandable with any number of user supplied wet or gel type batteries
    Expandable RuntimeYes
    DC System Voltage (VDC)48
    Battery Pack Accessory (Optional) 98-121  sealed lead acid battery (optional)
    Battery ChargeSelectable 23 / 90 amp
    VOLTAGE REGULATION
    Voltage Regulation DescriptionIncludes automatic voltage regulation to correct brownouts and over-voltages back to usable levels
    Overvoltage Correction  Input voltages above 252V are automatically reduced by 9% (230V) / Input voltages above 235/245V are automatically reduced by 10% (208V)
    Brownout Correction  Input voltages from 208V -189V are automatically boosted by 11% (230V) / Input voltages from 188V-166V are automatically boosted 12% (208V)
    Severe Brownout CorrectionInput voltages from 188V – 171V are automatically boosted by 26% (230V only)
    USER INTERFACE, ALERTS & CONTROLS
    Front Panel LEDsSet of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
    Switches3 position on/off/remote switch enables simple on/off power control plus “auto/remote” setting that enables distant on/off control of the inverter system when used in conjunction with optional  APSRM4  accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power – to maintain continuous AC power to connected loads. Configuration dipswitches set unit voltage, frequency, transfer-time, battery type, and charger-related settings.
    PHYSICAL
    Material of ConstructionMetal
    Cooling MethodDual multi-speed fans
    Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
    Shipping Dimensions (hwd / cm)40.64 x 36.83 x 59.06
    Shipping Weight (kg)59.42
    Unit Dimensions (hwd / cm)25.5 x 49.5 x 22.71
    Unit Weight (kg)48.31
    ENVIRONMENTAL
    Relative Humidity0-95% non-condensing
    COMMUNICATIONS
    SNMP CompatibilityOptional  SNMPWEBSOLOHV  accessory card enables remote monitoring of the unit via SNMP, SSH, telnet or Internet.
    Communications InterfaceContact closure; DB9 Serial
    LINE / BATTERY TRANSFER
    Transfer Time (Line Power to Battery Mode)Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment – verify transfer time compatibility of loads for UPS applications
    Low Voltage Transfer to Battery PowerIn 230V AC “auto” mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V). In 208V AC “auto” mode, inverter/charger switches to battery mode as line voltage drops to 165V (user adjustable to 175V)-see manual
    High Voltage Transfer to Battery PowerIn 230V AC “auto” mode, inverter/charger switches to battery mode as line voltage increases to 260V (user adjustable to 270 – see manual), In 208V AC “auto” mode, inverter/charger switches to battery mode as line voltage increases to 235V (user adjustable to 245V-see manual)
    FEATURES & SPECIFICATIONS
    TVSS Grounding  Main grounding lug connects inverter/charger to earth or vehicle chassis ground
    Generator Start CompatibilityRJ-11 port connects to a generator with user-supplied cable to automatically cycle generator when battery level is low
    Battery Temperature SensorRJ-11 port connects to optional battery temperature sensor cable to regulate the charging system based on battery temperature
    STANDARDS & COMPLIANCE
    CertificationsTested to EN62040-1 (CE), EN62040-2 (EMC), RoHS compliant
    WARRANTY
    Product Warranty Period (Worldwide)2-year limited warranty
