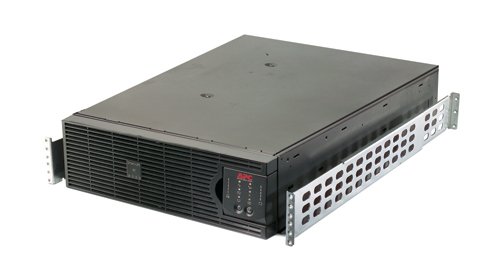

APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM
APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM - Image 2

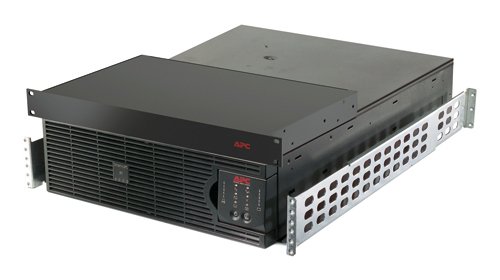

APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM - Image 3
APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM - Image 4

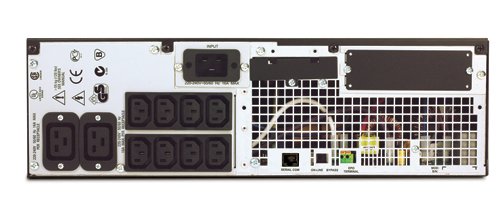

APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM - Image 5
APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM - Image 6
SKU: SURTD3000XLIM Categories: , , , Brand: APC Tag:

APC Smart-UPS RT 3000VA 230V - Marine - SURTD3000XLIM

APCRBC140 - Battery Replacement
  • ✔ Trusted UK Supplier
  • ✔ Fast UK Delivery Available
  • ✔ Manufacturer Warranty Included
  • ✔ Expert Advice Available
  • ✔ Protects equipment from power loss
  • ✔ Prevents downtime and data loss
  • ✔ Suitable for business and home setups
  • In Stock, 5 Available to order.
  • Order within for delivery on .
We are an APC Premier Partner!

£2757.48 Ex VAT
£3308.98 Inc VAT

Delivery Costs

Find below some of our pricing costs for Critical Power Supplies online store.

England, Wales and Scottish Lowlands

2 to 3 Working Days - £4.99.
Next Working Day - £9.99.
Pre Noon, Pre 10:30am - Contact Us.

Scottish Lowlands Postcodes
AB1 - AB3, AB23, AB30 - AB36, AB41 - AB45, AB51 - AB55, DD4, DD7, DD8, DD11, FK17, G84, PA20 - PA33, PA35 - PA37, PA41 - PA49, PA60 - PA68, PA70 - PA78, FK10, DG1 - DG14, DG16, DD1, DD2, DG7, KA1 - KA30, PA17, G60 - G62, G64, G66, G81, EH21, EH31 - EH36, EH39, EH40 - EH42, G46, G77, G78, PA1, PA3 - PA10, PA12, EH1 - EH10, EH12 - EH17, EH21, EH28, EH29, FK1 - FK6, DD6, KY1 - KY12, KY14 - KY16, G1 - G5, G9, G11, G12, G14, G15, G20, G21, G31, G32, G40 - G43, G45, G51, G53, G76, IV1 - IV28, IV40 - IV49, IV51 - IV56, KW1 - KW3, KW5 - KW14, PA39, PA40, PH19 - PH25, PH30 - PH44, PA10, PA13, PA15, PA16, PA18, PA19, EH10, EH18, EH19, EH23 - EH26, EH37, AB38, AB56, IV30 - IV32, IV36, EH46, G33, G67 - G69, G71 - G75, ML1 - ML11, KW1, KW15 - KW17, PH1 - PH10, PH13 - PH18, EH26, EH38, EH43 - EH45, TD1 - TD12, TD14, TD15, ZE1 - ZE3, FK6, G63, EH27, EH47 - EH49, EH52 - EH54, HS1 - HS9

Highlands, Northern Ireland, Channel Islands and Ireland

  • Scottish Highlands
    3 to 5 Working Days - £20

    Scottish Highlands Postcodes
    AB32, AB36 - AB38, AB40 - AB42, AB55, AB56, FK17 - FK99, G83, HS1 - HS9, IV1 - IV29, IV33 - IV63, KA27, KA28, KY1 - KY16, KW1 - KW18, PA20 - PA49, PA60 - PA78, PH17 - PH26, PH30 - PH44, PH49, PH50, ZE1 - ZE4

  • Northern Ireland
    3 to 5 Working Days - £50

  • Channel Islands
    3 to 5 Working Days - £25

  • Ireland
    5 to 7 Working Days - £99

  • Western Europe
    5 to 7 Working Days - £150 DAP
    DAP / Delivered at Place - The seller is deemed to have delivered when the goods are placed at the disposal of the buyer on the arriving means of transport and ready for unloading at the named place of destination. Under DAP terms, the buyer is liable for the freight insurance, import taxes, customs brokerage, and any expenses incurred to unload the cardo from the container at the final destination.

Purchase this item and get 27574 Points - equivalent to the value of £27.57

All major debit and credit cards accepted.

  • Description
  • Technical Data
  • Onsite Maintenance
  • Downloads

Marine Features & Benefits

Serviceability

Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Technical support Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.

User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Easy to install Innovative design allows for fast, easy installation by almost anybody.

Availability

Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.

Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

Serial connectivity Provides management of the UPS via a serial port.

SmartSlot Customize UPS capabilities with management cards.

Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.

LED Indicators Provide easy-to-read status of the unit and utility power conditions.

Output
Max Configurable Power (Watts) 2.1kWatts
/ 3.0kVA
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 3 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Load Crest Factor 3 : 1
Topology Double conversion online
Waveform type Sine wave
Bypass Internal bypass (automatic and manual)

Input
Input frequency 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations 180 – 270V
Number of Power Cords 1
Other Input Voltages 220 V, 240 V

Batteries & Runtime
Battery type Lead-acid battery
Included Battery Modules 2
Typical recharge time 2.5hour(s)
Replacement Battery APCRBC140
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Charge Power (Watts) 359 Watts
Extendable Run Time 1
Runtime View Runtime Graph
Efficiency View Efficiency Graph

Communications & Management
Interface Port(s) RJ-45 Serial, Smart-Slot
Pre-Installed SmartSlot™ Cards Control panel LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) Yes

Surge Protection and Filtering
Surge energy rating 555Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height 432MM, 43.2CM
Maximum Width 130MM, 13.0CM
Maximum Depth 660MM, 66.0CM
Net Weight 54.55KG
Shipping weight 63.64KG
Shipping Height 347MM, 34.7CM
Shipping Width 603MM, 60.3CM
Shipping Depth 980MM, 98.0CM
Color Black
Units per Pallet 6.0

Environmental
Operating Temperature 0 – 55 °C
Operating Relative Humidity 0 – 95 (Non-condensing) %
Operating Elevation 0 – 3048meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95 (Non-condensing) %
Storage Elevation 0 – 15240meters
Audible noise at 1 meter from surface of unit 55.0dBA
Online thermal dissipation 609.0BTU/hr
Protection Class IP20

Conformance
Approvals CE, DNV, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, EN 61000-3-2, KCC
Standard warranty 2 years repair or replace, optional extended warranties available, optional on-site services available

Sustainable Offer Status
RoHS Compliant
Proposition 65 Warning Available in Documentation tab
