SKU: EPDU1132B Categories: , Tag:

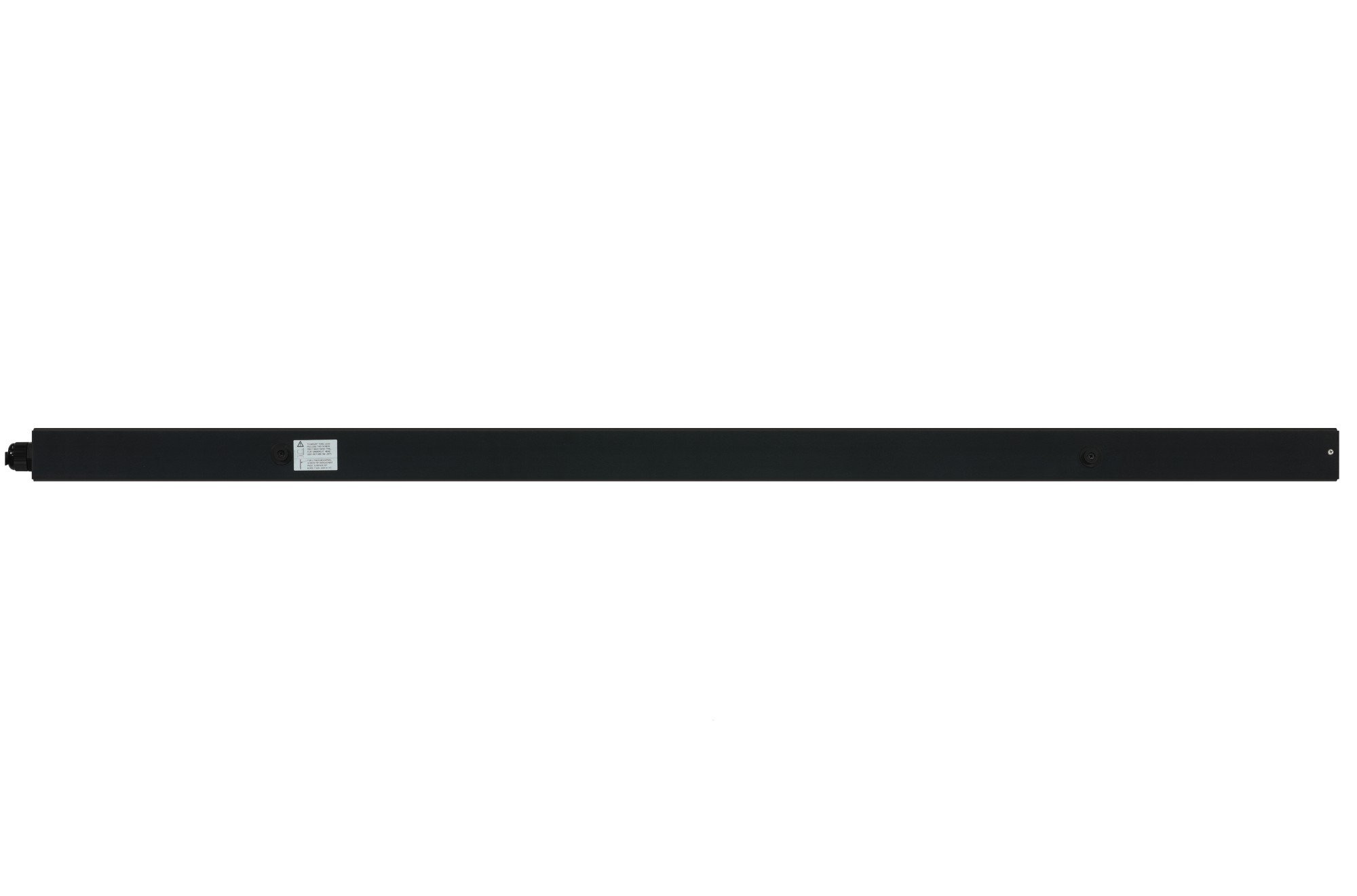

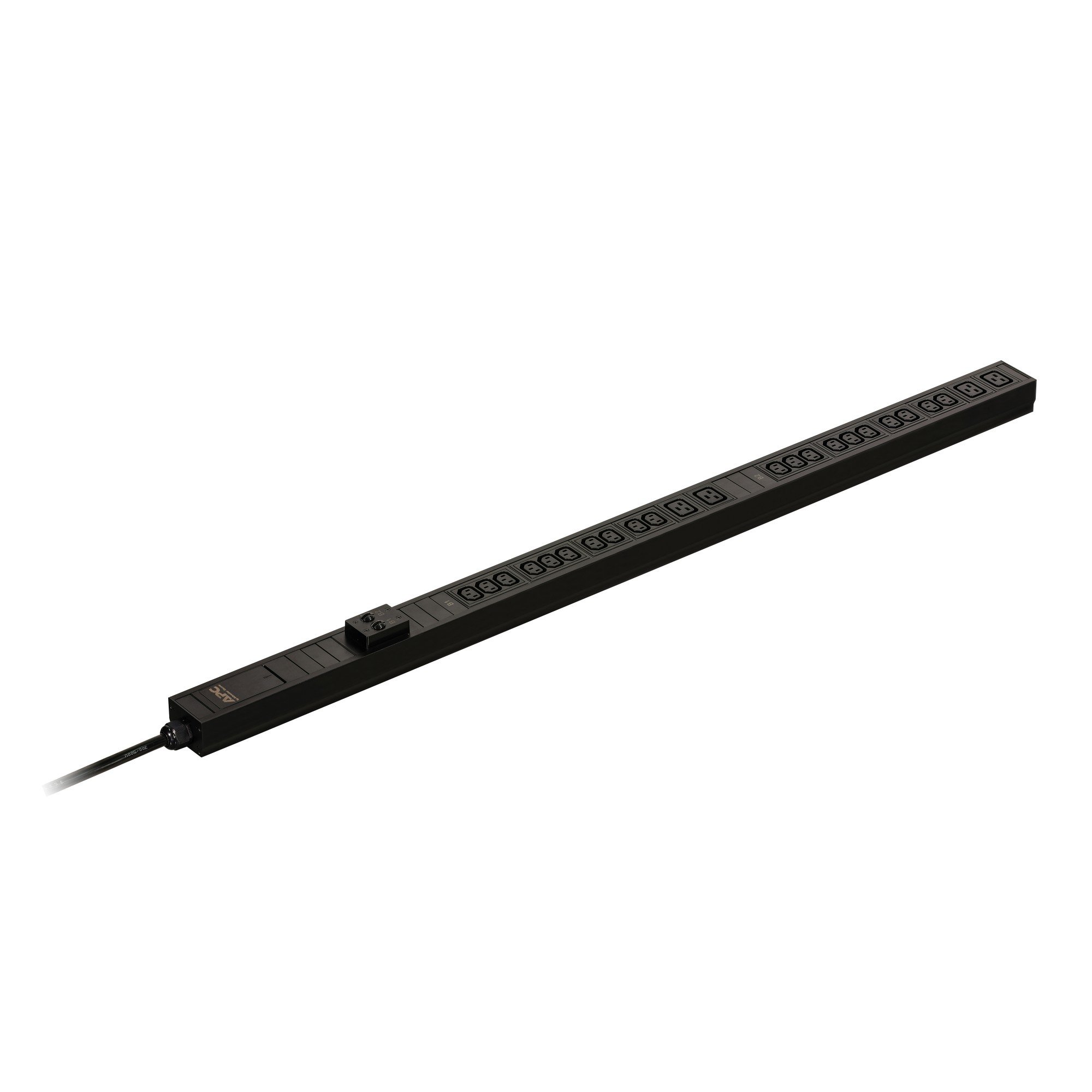

APC EPDU1132B power distribution unit (PDU) 24 AC outlet(s) 0U Black - EPDU1132B

  • In Stock, 15 Available to order.
  • Order within for delivery on .

£273.69 Ex. VAT £328.43 Inc. VAT

Warranty: 1 Year

All major debit and credit cards accepted.

  • Description

    Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions. Toolless Rack Mounting Capabilities Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure. Vertical Mounting Capabilities Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures. Agility Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment. Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Cost Savings Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price.

  • Technical Data
    Design
    On/off switchNo
    TypeSingle-phase
    PDU typesBasic
    MountingVertical
    Product colourBlack
    CertificationCE, TUV
    Rack capacity0U
    Housing materialAluminium
    Ports & interfaces
    AC outlets quantity24 AC outlet(s)
    AC outlet typesC13 coupler, C19 coupler
    Power plugIEC 60309
    Features
    CertificationCE, TUV
    Power
    Nominal input voltage200/208/230 V
    Nominal output voltage230 V
    Maximum current32 A
    Maximum input current per phase32 A
    Load capacity7360 VA
    AC input frequency50/60 Hz
    Weight & dimensions
    Weight3.58 kg
    Width62 mm
    Depth44 mm
    Height1175 mm
    Package width160 mm
    Package depth110 mm
    Package height1320 mm
    Package weight4.36 kg
    Packaging data
    Package width160 mm
    Package depth110 mm
    Package height1320 mm
    Package weight4.36 kg
    Packaging content
    ManualYes
    Operational conditions
    Operating temperature (T-T)0 – 45 °C
    Storage temperature (T-T)-25 – 65 °C
    Storage relative humidity (H-H)5 – 95%
    Operating relative humidity (H-H)5 – 95%
    Operating altitude0 – 3000 m
    Non-operating altitude0 – 9000 m
  • Onsite Maintenance

    Onsite Maintenance is as easy as 1, 2, 3, 4. Contact us for further information 24×7 on our sales number.

    1: Plug and Play (400-3kVA) – Extended Warranty Contracts from 1 to 5 years from £5.99 per month ex VAT

    For plug & play UPS Critical Power offers you a full range of distributed service packs. These competitively priced turn-key solutions optimize your UPS performances and enhance the availability of your equipment while meeting your financial constraints and technical requirements.

    Warranty Plus Extends your warranty up to 3 years, next working day replacementGreen tick
    Warranty Plus Extends your warranty up to 5 years, next working day replacementGreen tick
    Intervention, Provides one preventative maintenance visit, planned visitGreen tick
    Battery Plus, Provides replacement batteries to site, next working day replacementGreen tick
    Warranty One Extends your warranty up to 1 year, next working day replacementGreen tick

    2: Hardwired (4kVA Upwards– Onsite Maintenance Contracts from 1 to 5 years from £49.99 per month ex VAT

    No matter what, your UPS, Generator, Cooling, Switchgear or Electrical Hardware must be ready to perform at all times. While every power solution we supply is backed-up by a comprehensive warranty with the manufacturer, maintenance plans to ensure business continuity are highly recommended, particularly for UPS systems from 1kVA. In particular, the battery set is of prime importance, and must be in good working order. With other consumables, such as fans and DC capacitors requiring regular maintenance and inspection logs reviewed to predict potential future problems.

    Services Included

    Silver Level

    Gold Level

    Platinum Level



    Technical Hotline 24/7YesYesYesGreen tick
    Preventative MaintenanceYesYesYesGreen tick
    Remote Monitoring 24/7YesYesYesGreen tick
    Firmware UpgradesYesYesYesGreen tick
    Emergency ResponseYesYesYesGreen tick
    LabourYesYesYesGreen tick
    PartsYesYesYesGreen tick
    Monthly Event/Status ReportoptionoptionoptionGreen tick
    Onsite Crash KitoptionoptionoptionGreen tick
    Response Time12 working hours8 working hours4 clock hoursGreen tick

    3: 24×7 Remote Monitoring Contracts from 1 month to 5 years from £29.99 per month ex VAT

    Remote monitoring of UPS, Generators, Air Conditioning, Site Access and Environmental Systems is essential to allow swift offsite investigation of fault reports and real-time monitoring of the site status, allowing the correct response to be created and dispatched to site.

    Engineer Installation and configuration during normal hoursGreen tick
    24×7 flexible status and remote monitoring.Green tick
    Encrypted communication, allowing safe offsite monitoringGreen tick
    Alarms and events emailed and SMS texted automaticallyGreen tick
    Firewall FriendlyGreen tick
    Cloud based status overview and multiple sites status on one screenGreen tick
    Allows First Fix Response to SiteGreen tick

    4. IR Thermal Imaging Surveys – Infrared electrical inspection. Infrared electrical testing finds hot, dangerous problems quickly. Infrared electrical inspections find hot spots caused by defects in connections and components.

    Detect system overloads, loose defective components and damaged switchgear. Infrared electrical testing finds hot, dangerous problems quickly. Infrared electrical inspections find hot spots caused by defects in connections and components.

    Infrared thermography is used to find areas of excess heat (caused by increased resistance) so that problems can be corrected before a component fails, causing damage to the component, creating safety hazards and productivity loss. Because increased heating is a sign of failure, infrared is the best diagnostic tool available for finding these hot connections in the early stages of degeneration.
