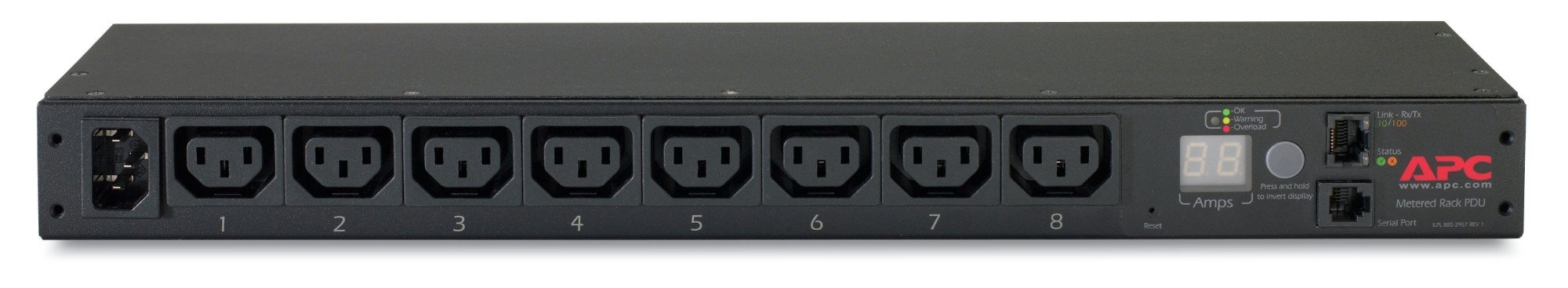

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black - AP7820B
- Available to order.
- ETA will be advised upon ordering or call us on 0800 978 8988 for leadtime.
£454.33 Ex. VAT £545.20 Inc. VAT
All major debit and credit cards accepted.
Marketing Features Local Current Monitoring Display The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Local and web-based monitoring Status available to customers both in the data center and remotely Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Load indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Agility Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
- Technical Data
Design PDU types Metered Mounting Horizontal/Vertical Product colour Black Certification cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI Rack capacity 0U/1U Ports & interfaces AC outlets quantity 8 AC outlet(s) AC outlet types C13 coupler Power plug C14 coupler Input connection type IEC-320 C14 Features Cable length 1.98 m LED indicators Yes Certification cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI Management features Monitoring Current, Power, Voltage Ergonomics Cable length 1.98 m LED indicators Yes Power Nominal input voltage 208-230 V Nominal output voltage 208-230 V Maximum current 15 A Maximum total current draw per phase 10 A Maximum input current per phase 15 A Load capacity 2300 VA AC input frequency 50 – 60 Hz Weight & dimensions Dimensions (WxDxH) 444 x 102 x 44 mm Weight 1.73 kg Package weight 2.91 kg Package dimensions (WxDxH) 470 x 337 x 64 mm Packaging data Package weight 2.91 kg Package dimensions (WxDxH) 470 x 337 x 64 mm Operational conditions Operating temperature (T-T) -5 – 45 °C Storage temperature (T-T) -25 – 65 °C Storage relative humidity (H-H) 5 – 95% Operating relative humidity (H-H) 5 – 95% Operating altitude 0 – 3000 m Non-operating altitude 0 – 15000 m Technical details Sustainability certificates RoHS
- Onsite Maintenance
Onsite Maintenance is as easy as 1, 2, 3, 4. Contact us for further information 24×7 on our sales number.
1: Plug and Play (400-3kVA) – Extended Warranty Contracts from 1 to 5 years from £5.99 per month ex VAT
For plug & play UPS Critical Power offers you a full range of distributed service packs. These competitively priced turn-key solutions optimize your UPS performances and enhance the availability of your equipment while meeting your financial constraints and technical requirements.
Warranty Plus Extends your warranty up to 3 years, next working day replacement Warranty Plus Extends your warranty up to 5 years, next working day replacement Intervention, Provides one preventative maintenance visit, planned visit Battery Plus, Provides replacement batteries to site, next working day replacement Warranty One Extends your warranty up to 1 year, next working day replacement
2: Hardwired (4kVA Upwards– Onsite Maintenance Contracts from 1 to 5 years from £49.99 per month ex VAT
No matter what, your UPS, Generator, Cooling, Switchgear or Electrical Hardware must be ready to perform at all times. While every power solution we supply is backed-up by a comprehensive warranty with the manufacturer, maintenance plans to ensure business continuity are highly recommended, particularly for UPS systems from 1kVA. In particular, the battery set is of prime importance, and must be in good working order. With other consumables, such as fans and DC capacitors requiring regular maintenance and inspection logs reviewed to predict potential future problems.
Technical Hotline 24/7 Yes Yes Yes Preventative Maintenance Yes Yes Yes Remote Monitoring 24/7 Yes Yes Yes Firmware Upgrades Yes Yes Yes Emergency Response Yes Yes Yes Labour Yes Yes Yes Parts Yes Yes Yes Monthly Event/Status Report option option option Onsite Crash Kit option option option Response Time 12 working hours 8 working hours 4 clock hours
3: 24×7 Remote Monitoring Contracts from 1 month to 5 years from £29.99 per month ex VAT
Remote monitoring of UPS, Generators, Air Conditioning, Site Access and Environmental Systems is essential to allow swift offsite investigation of fault reports and real-time monitoring of the site status, allowing the correct response to be created and dispatched to site.
Engineer Installation and configuration during normal hours 24×7 flexible status and remote monitoring. Encrypted communication, allowing safe offsite monitoring Alarms and events emailed and SMS texted automatically Firewall Friendly Cloud based status overview and multiple sites status on one screen Allows First Fix Response to Site
4. IR Thermal Imaging Surveys – Infrared electrical inspection. Infrared electrical testing finds hot, dangerous problems quickly. Infrared electrical inspections find hot spots caused by defects in connections and components.
Detect system overloads, loose defective components and damaged switchgear. Infrared electrical testing finds hot, dangerous problems quickly. Infrared electrical inspections find hot spots caused by defects in connections and components.
Infrared thermography is used to find areas of excess heat (caused by increased resistance) so that problems can be corrected before a component fails, causing damage to the component, creating safety hazards and productivity loss. Because increased heating is a sign of failure, infrared is the best diagnostic tool available for finding these hot connections in the early stages of degeneration.
- DownloadsOnline User Guide Rack PDUs and In-Line Current Meters AP7XXXB Installation Sheet Rack PDU AP7XXXB Series Declaration of Conformity CMIM Morocco_AP78XX Series (French) UL/C-UL Approval E177299 CB Certificate AP6K End of Life instructions for Switched Rack PDU +AF8-EN AP7820B - Rack PDU, Metered, 1U, 12A, 208V, 10A 230V (8)C13
